Maximum tensile strength and minimal elongation for the longest and heaviest conveyor systems. Strata Steel represents DBP’s highest-tension, highest-capacity conveying technology. Engineered for long overland systems and high-power installations, it ensures consistent performance and unmatched stability over extreme distances.
Typical Applications

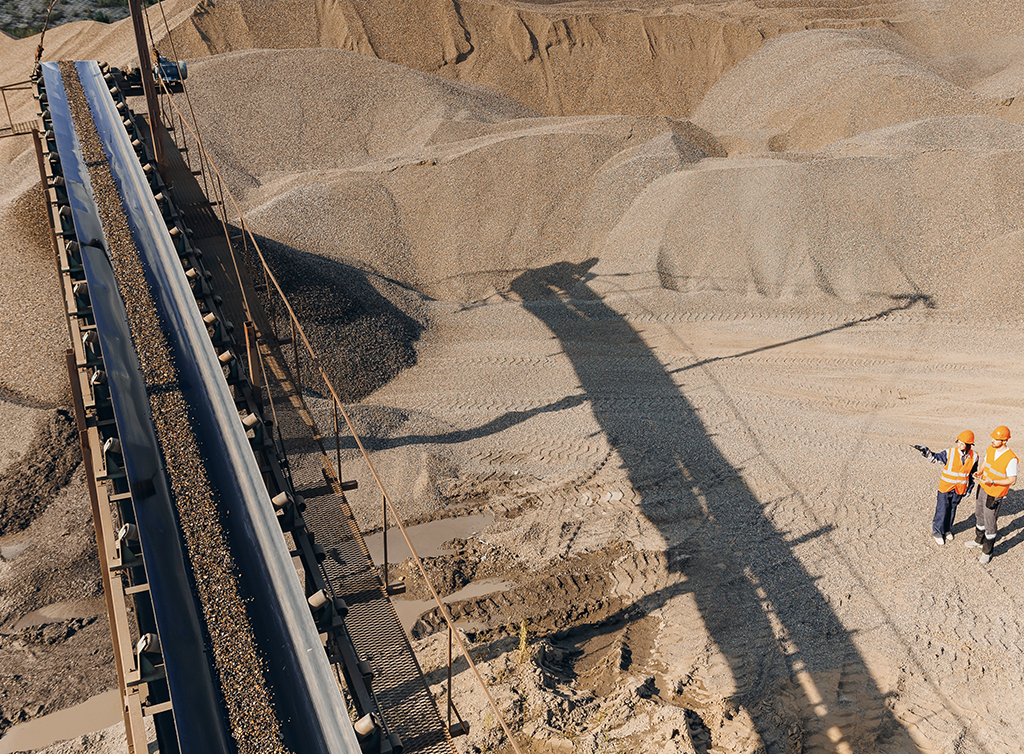

Long-Distance Overland Conveyors
Long-Distance Overland Conveyors
Engineered for extended runs, delivering stable performance and minimal elongation over vast conveying distances.
Primary Feed & Trunk Conveyors
Primary Feed & Trunk Conveyors
High-strength construction supports heavy loads at the core of critical material handling systems.
High-Throughput Mining, Ports & Refineries
High-Throughput Mining, Ports & Refineries
Designed to perform reliably under extreme volumes, enabling continuous operation in high-capacity facilities.
Minimal Stretch & Stable Tracking Systems
Minimal Stretch & Stable Tracking Systems
Ultra-low elastic stretch ensures precise tracking, reduced maintenance, and long-term dimensional stability.
Engineering Characteristics
Hot-dip galvanised steel cords for superior rubber bonding and protection against the elements.
Open-cord construction ensures full rubber penetration for maximum cord protection.
Individually tensioned cords on German-engineered Seimpelkamp production lines, with values recorded during curing.
Manufactured to SANS 1366 and DIN 22131.

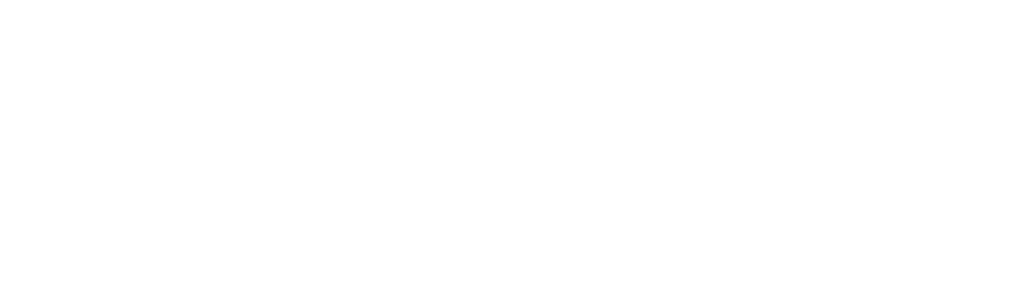

Mechanical Performance & Application Envelope
- Application Envelope: Parameter | Value | | :--- | :--- |
- Conveyor Length: Long overland and high-power systems
- Safety Factor: 6.67 : 1
- Strength Range: ST500 – ST6300
- Widths: Up to 2 400 mm
